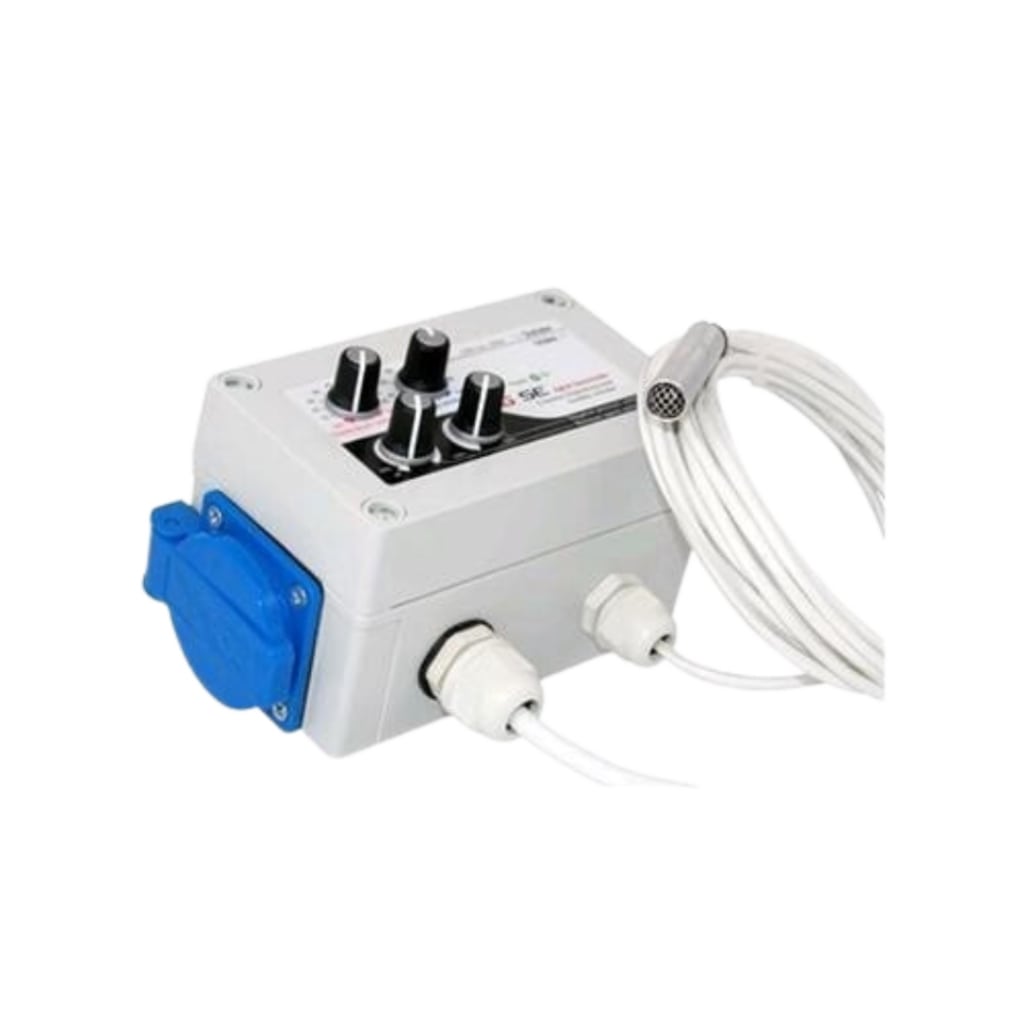

humidity & temperature speed control for rooms with air flow in and out. The controller keeps the room humidity & temperature constant and under negative pressure to prevent odors from escaping.
It can be easily controlled, adjusting the required humidity, temperature, min. speed and negative pressure in your room on four rotary knobs. Three low-shining LED lights indicate the control status and on-position.
This fan controller can also be used as an air out only controller on two fans, if there is a natural way of air in.
The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plug with flap-lid and a low voltage sensor making it perfect for damp rooms. The sensor is supplied with a 4-meter long cable.
Dimensions and technical data are:
Case: WxHxD = 130x80x70mm
Controller: WxHxD = 160x100x90mm
Voltage: 230V / 50HZ
Digital sensor 5V Measures temperatures from -55 ° C to + 125 ° C (-67 ° F to + 257 ° F)
0.5 ° C accuracy from -10 ° C to + 85 ° C
humidity accuracy ± 4.5% RH
Protection class IP44
GSE Climate Control Humidity Temperature Vacuum
GSE Climate Control Humidity Temperature Vacuum – This digital fan controller is a humidity & temperature dependent speed controller for rooms with air flow in and out. The fan controller keeps the room’s humidity & temperature constant and under pressure, preventing odors from escaping. It can be easily controlled by adjusting the desired humidity, temperature, min. speed and pressure in your room on four rotary knobs. Three low-brightness LED lights indicate the Cate control status and on-position.
The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a waterproof, flap-cap plug and a low voltage sensor making it perfect for damp rooms. The sensor comes with a 4 meter long cable.
Dimensions and technical data:
Case: WxHxD = 130x80x70mm
Controller: WxHxD = 160x100x90mm
Designed for: 2x200W / TRIAC 2x16A
Voltage: 230V / 50HZ
Digital sensor 5V Measures temperatures from -55 ° C to + 125 ° C (-67 ° F to + 257 ° F)
0.5 ° C accuracy from -10 ° C to + 85 ° C
Humidity accuracy ± 4.5% RH
Ingress protection IP54
Settings:
Temperature: 20C ° – 30C °
Humidity: 30% – 100%
Minimum speed: off, 20% – 100%
Vacuum: 100% – 50%
