Gse Digital Fancontroller

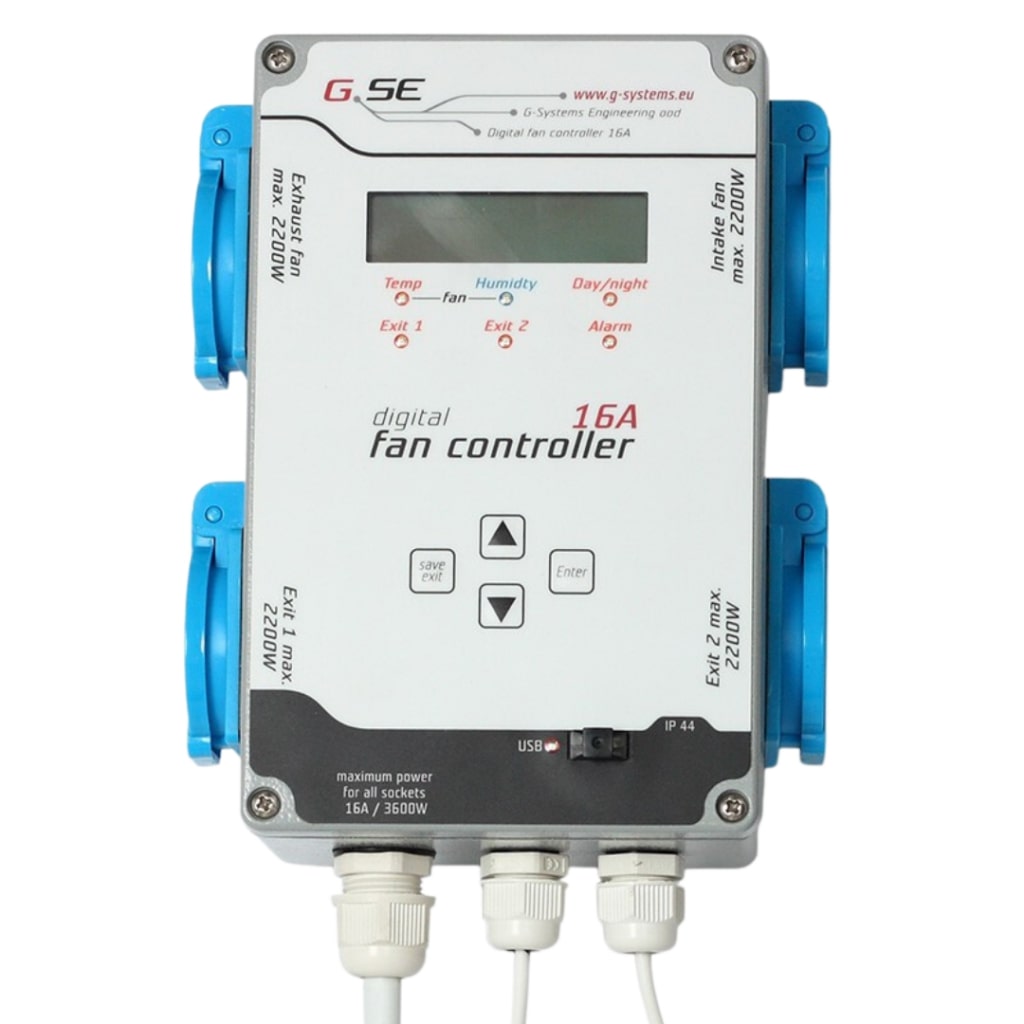

This Fan Controller 16a is for Humidity and temperature controller for supply and exhaust fans with 2 additional programmable outputs and LCD display. The 16A ventilation controller is built from a solid, very robust aluminum housing. It can control up to 2200W of power per socket. In addition to a conventional temperature and humidity variation, the 16A controller controls 2 pcs. Individual programmable output sockets. These can be assigned to one of the two sensors or controlled by a timer function.
Particularly attractive is the large number of parameters that can be set for day / night individually to meet all desired requirements. The controller leads two transistor outputs to fans (phase control) and in parallel works internally two 0-10V outputs. Depending on the version, the controller is equipped with a USB port for data logging. All relevant measurement data and control signals are written to a CSV file on the USB stick, and can later be evaluated in an Excel application.

The controller has a free space for a pressure sensor to control the supply fan depending on the pressure difference. The device has a 16A fuse, which is considered the maximum permissible load for the entire controller. Each individual output can carry a max. 2200W per socket and all outputs together have a max. load of 3600W / 16A.

The device is supplied with a 2m connection cable for connection to a standard household socket of 230V / 16A. The sensors are supplied with a 4m long cable, which can be extended up to 10m. A digital display and four navigation keys provide easy navigation in the menu and 6LED lights indicate the current switching status. Among other things, settings such as display functions, memory frequency and language, English, German, French, Spanish and Italian can be selected.

Hardware:

2 pcs. Variable outputs for fans
2 pcs. Programmable outputs for devices
1 pc. Temperature and humidity sensors with light detector (air)
1pc Temperature sensor (Waterproof)

Dimensions and technical data:

Controller: WxHxD = 150x210x110mm
Voltage: 230V / 50Hz / I max: 16A / 3600W
Humidity and temperature sensor: 5V, measures temperatures from -55 ° C to + 125 ° C Accuracy 0.5 ° C from -10 ° C to + 85 ° C
Humidity Accuracy ± 4.5% rh
Temperature sensor: 5V, measures temperatures from -55 ° C to + 125 ° C (-67 ° F to +257 ° F)
Accuracy 0.5 ° C from -10 ° C to + 85 ° C
Protection class: IP54
