LightRail – Add A Lamp Kit

This extension to your lightrail gives you the option of having up to 3 lamps on one system.

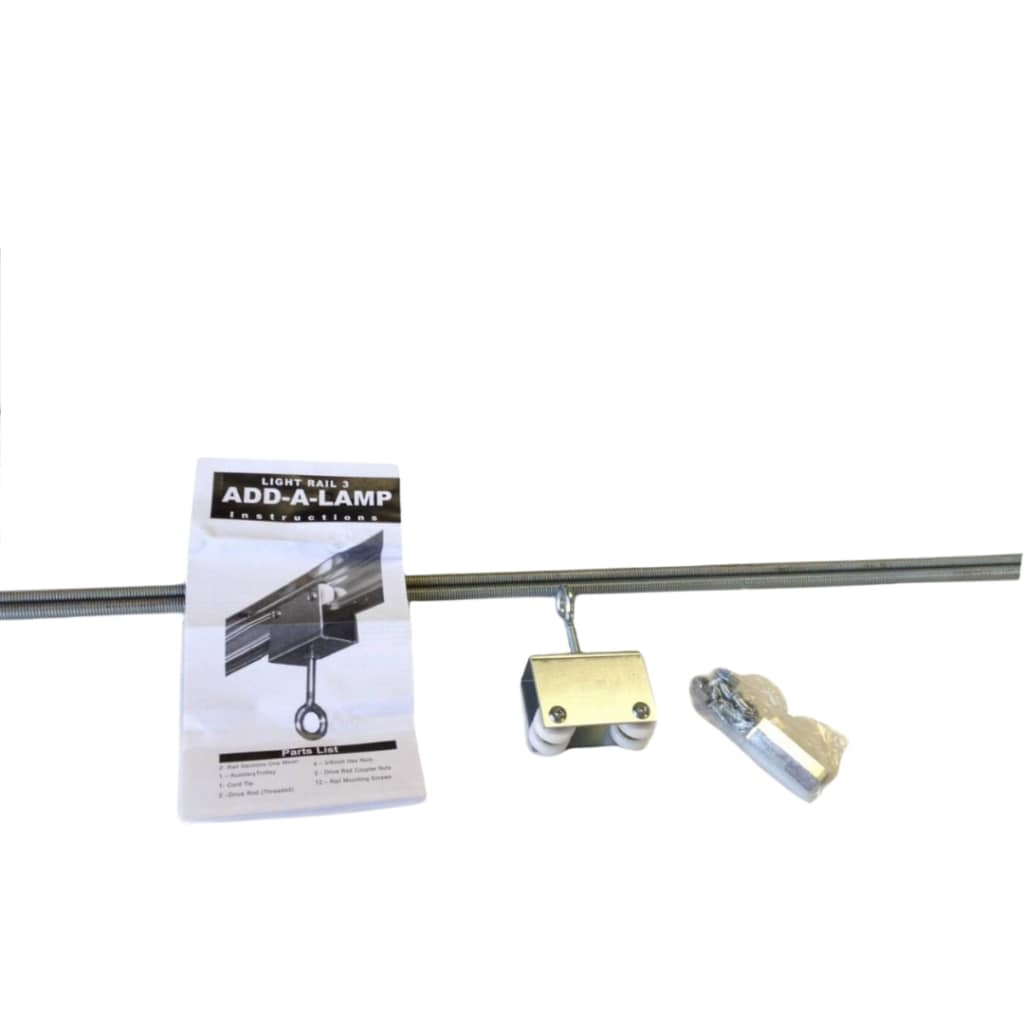

The LightRail Add-A-Lamp Kit allows for extended coverage for an additional indoor grow light. So how this works includes an adjustable run length and grow light spacing. The Add A Lamp Kit includes a two-piece, 2 meter light mover rail (6’6″ total length). And it comes with a 6′ push/pull pole, a utility cart, hardware, and instructions. This grow light system comes complete.

With the LightRail Add A Lamp Kit, multiple indoor grow lights can be moved
How to install a light mover is easy enough, and the results are so worth it.

LightRail Add A Lamp Kit with a 2m extension pole to move a 2nd grow light in conjunction with the grow light mover Motor, Extreme Duty version.

Note: Up to three indoor grow lights can be moved in line with this grow light system. For the three indoor garden light configurations, you would have this: There would be a LightRail Add-A-Lamp Kit, then a LightRail 3.5 or a LightRail 4.0 Kit, and then another LightRail Add-A-Lamp Kit. To move two indoor grow lights in-line, you would need a LightRail 3.5 or 4.0 Kit and then an Add-A-Lamp Kit.

Tip: For a tighter fit, the Add-A-Lamp Kit can be used with your LightRail 3.5 or 4.0 Kit only with light mover rail halves. And the DIY light mover configuration would have 1-3 feet of space between the light mover rail halves. So this allows for more flexibility in the grow light system. And the indoor plant lights will fill the gap areas from both sides. This grow light system configuration provides good grow light coverage for the entire area including the “gap plants”.

Larger LED Grow Light with Add A Lamp Kit with RoboBar and additional hardware included

If you have larger LED grow lights, the Add A Lamp Kit can be used with the Light Rail RoboBar with minor setup changes. In this case, both 6’6″ rails will be spaced about 3 feet (1m) apart, and the Add A Lamp Kit’s Extender Rod (push/pull rod) will be attached from RoboBar to RoboBar. This is instead of the Motor to Auxiliary Trolley as with the standard Add A Lamp Kit setup. Special instructions and additional hardware will be included for this RoboBar to RoboBar connection.

Suggested travel distance? Approximately 3′ (1m) Switch Stop to Switch Stop. This will likely illuminate the 6’6″ (2m) rail length nicely, as half of the light from your light will travel beyond that stop setting, and this will happen at both ends of the light’s travel, with grow light pattern coverage going even further. Larger LED grow lights can travel further with a 3′ (1m) gap between inline rails.

Suggested time delay setting? At 3′ (1m) travel, a time delay setting of around 20-30 seconds may be just right. You can then see over time if adjustments are needed. Larger LED grow lights will perform best with a maximum time delay of 60 seconds.

Made by Gualala Robotics and part of the LightRail brand. It’s all about quality engineered, instrument grade robotics. Made in the USA, and you can only get this with the LightRail from Gualala Robotics.
