LUMATEK Digital Panel PLUS 2.0 (HID+LED)
The LUMATEK Digital Panel PLUS 2.0 (HID+LED) is a dual-signal digital lighting controller that offers precise remote control of your Lumatek light fixtures, drivers and ballasts. Using innovative technology, this controller intelligently monitors your grow room temperatures, light timing and intensity automation, safety-controlled dimming and on/off. Simply connect it to your Lumatek controllable fixtures, drivers or ballasts and easily regulate your grow room environment.
The Lumatek Digital Panel Plus 2.0 is a dual-signal dual-channel digital lighting controller with each of the two channels (zones) capable of controlling up to 200 Lumatek controllable HID fixtures or ballasts with a digital RS485 signal or up to 50 LED drivers with an analog 0-10V signal. It is possible to use each zone to control luminaires in two independent separate rooms or to control up to 400 luminaires in a room with two different light source types.
Each channel (zone) can control ballasts/drivers with the same power; Zone A can control the same ballasts/drivers as Zone B or Zone B can be set to control different powered ballasts/drivers, for example: Zone A can be set to control 600W LED luminaires and Zone B set to control 600W or 315W HID ballasts.
Connects to Lumatek controllable HID ballasts and fixtures; 315W, 600W, 630W and 1000W
Connects to Lumatek controllable LED drivers and fixtures; 90W, 465W, 600W and 1000W.
Dual signal RS485 digital for HID and 0-10V analog protocol for LED.
Automate switching, timing, dimming and simulate sunrises and sunsets.
Temperature control dimming and switching for security control
Automate light intensity and PPFD
SPECIFICATIONS
Power: Adapter 100 – 240V AC 50/60Hz – DC 5V/2A
Match HID ballast: 315W, 600W, 630W, 1000W
Match LED driver: 90W, 465W, 600W, 1000W
Dimensions: 10% Voltage: 1000W
Amperage: 1000W 1%
Temperature controlled Safety Dimming range: 0ºC-40ºC
Temperature controlled Safety Switching range: 10ºC-50ºC
Sunrise and sunset Duration: 0-30 min
Dimensions: 125 mm x 80 mm x 25 mm
Control panel for up to 400 HID ballasts or 100 LED drivers
Two channels (Zone A & Zone B)
Max. number of ballasts/drivers per zone: 200 (RS485) HID or 50 (0-10V) LED
Total number of ballasts/drivers per controller: 400 (RS485) HID or 24000 LEDs (0-210V
) switching
Temperature sensor monitoring and control
Dimmer control (1% step)
Security and temperature control automation
Simulate sunrise and sunset to reduce plant stress
Light intensity automation
Items included:
1 x Lumatek Control Panel Plus 2.0
1 x Power adapter and cable
2 x Temperature sensor 5m cable
2 x HID control link cable 5m

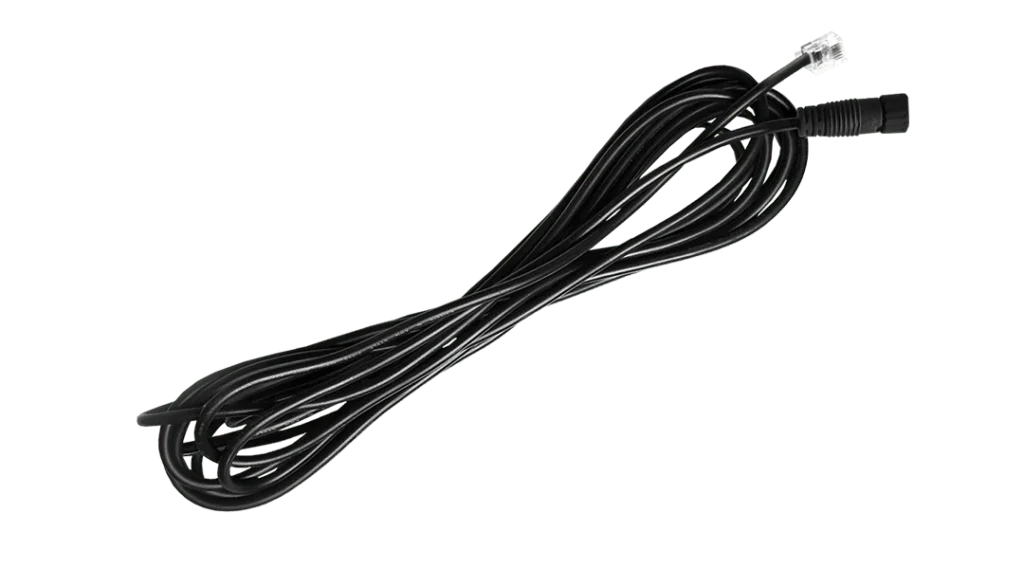

2 x LED control link cable
